Code load cell dengan Arduino uno

TUTORIAL LOAD CELL  MENAMPILKAN KE LCD

Oke disini saya akan membagikan tutorial Load cell menampilkan ke LCD menggunakan Arduino uno.
Dan jika ada yang membingungkan bisa dikomentari dibwah pasti di respon kok. Hehehehe

Alat dan bahannya:

• Arduino Uno
• Load cell (40kg)
• HX711 Load cell Amplifier Module
• 16x2 LCD
• Connecting wires
• USB cable
• Breadboard
• Nut bolts, Frame and base(kabel jumper)

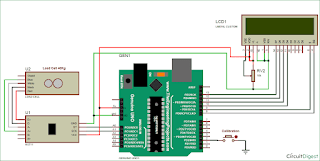

1.Susunlah rangkaian seperti dibawah ini:

° Hubungkan PIN blue load cell ke PIN A+ HX711

° Hubungkan PIN white load cell ke PIN A- HX711

° Hubungkan PIN black load cell ke PIN E- HX711

° Hubungkan PIN read load cell ke PIN E+ HX711

° Hubungkan PIN GND HX711 ke PIN GND Arduino dan PIN 5,1,16 LCD

°Hubungkan PIN DT HX711 ke PIN A0 Arduino

° Hubungkan PIN SCK HX711 ke PIN A1 Arduino

° Hubungkan PIN VCC HX711 ke PIN 5V Arduino dan PIN 2,15 LCD

° Hubungkan PIN 13 Arduino ke PIN 14 LCD

° Hubungkan PIN 12 Arduino ke PIN 13 LCD

° Hubungkan PIN 11 Arduino ke PIN 12 LCD

° Hubungkan PIN 10 Arduino ke PIN 11 LCD

° Hubungkan PIN 9 Arduino ke PIN 6 LCD

° Hubungkan PIN 8 Arduino ke PIN 4 LCD

° Hubungkan PIN 2 Arduino ke push button dan hubungkan push button ke ground.

2.Lalu masuk source code ke Arduino IDE:

#include <LiquidCrystal.h>
LiquidCrystal lcd(8, 9, 10, 11, 12, 13);

#define DT A0
#define SCK A1
#define sw 2

long sample=0;
float val=0;
long count=0;

unsigned long readCount(void)
{
  unsigned long Count;
  unsigned char i;
  pinMode(DT, OUTPUT);
  digitalWrite(DT,HIGH);
  digitalWrite(SCK,LOW);
  Count=0;
  pinMode(DT, INPUT);
  while(digitalRead(DT));
  for (i=0;i<24;i++)
  {
    digitalWrite(SCK,HIGH);
    Count=Count<<1;
    digitalWrite(SCK,LOW);
    if(digitalRead(DT))
    Count++;
  }
  digitalWrite(SCK,HIGH);
  Count=Count^0x800000;
  digitalWrite(SCK,LOW);
  return(Count);
}

void setup()
{
  Serial.begin(9600);
  pinMode(SCK, OUTPUT);
  pinMode(sw, INPUT_PULLUP);
  lcd.begin(16, 2);
  lcd.print("    Weight ");
  lcd.setCursor(0,1);
  lcd.print(" Measurement ");
  delay(1000);
  lcd.clear();
  calibrate();
}

void loop()
{
  count= readCount();
  int w=(((count-sample)/val)-2*((count-sample)/val));
  Serial.print("weight:");
  Serial.print((int)w);
  Serial.println("g");
  lcd.setCursor(0,0);
  lcd.print("Weight            ");
  lcd.setCursor(0,1);
  lcd.print(w);
  lcd.print("g             ");

  if(digitalRead(sw)==0)
  {
    val=0;
    sample=0;
    w=0;
    count=0;
    calibrate();
  }
}

void calibrate()
{
    lcd.clear();
  lcd.print("Calibrating...");
  lcd.setCursor(0,1);
  lcd.print("Please Wait...");
  for(int i=0;i<100;i++)
  {
    count=readCount();
    sample+=count;
    Serial.println(count);
  }
  sample/=100;
  Serial.print("Avg:");
  Serial.println(sample);
  lcd.clear();
  lcd.print("Put 100g & wait");
  count=0;
  while(count<1000)
  {
    count=readCount();
    count=sample-count;
    Serial.println(count);
  }
  lcd.clear();
  lcd.print("Please Wait....");
  delay(2000);
  for(int i=0;i<100;i++)
  {
    count=readCount();
    val+=sample-count;
    Serial.println(sample-count);
  }
  val=val/100.0;
  val=val/100.0;        // put here your calibrating weight
  lcd.clear();

}
